Swedish Ferry Enters Service
with new SURVITECZODIAC Escape Slide System
|
A new
version of the successful SurvitecZodiac MIS MES escape slide and liferaft system has been
fitted to the latest addition to the Ventrafiken fleet. The Uraniborg was recently completed
at the Hvide Sande shipyard in Denmark and has just entered service between Landskrona and the
island of Ven located in the Oresund between Sweden and Denmark.
The new ferry is fitted with two SurvitecZodiac escape slide systems that each contain two

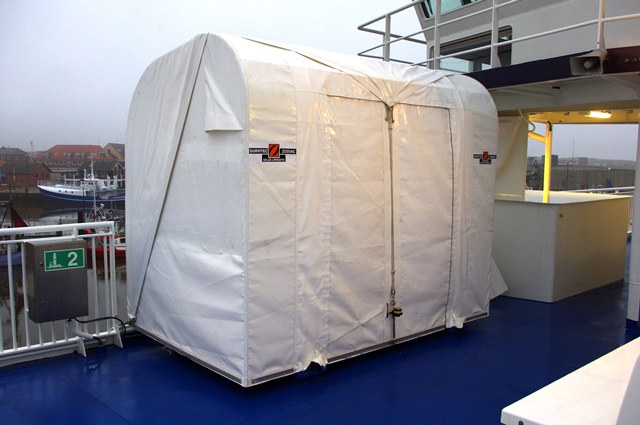

151-person open reversible liferafts. The deck installations are the first to feature a soft
fabric cover that protects against the weather and ultra-violet light, while also offering
valuable cost savings to the customer. Besides being substantially lighter than a traditional
GRP casing, the cover can be quickly replaced at a much lower cost if it is damaged |
 |

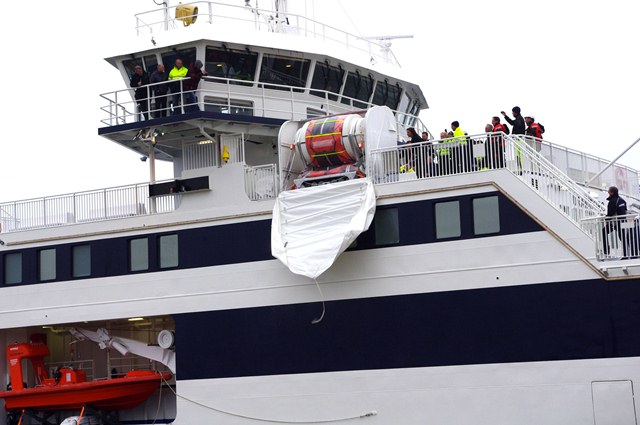

| The SurvitecZodiac liferafts are stored inside the rolled and folded inflatable slide and,
carried aboard a tilting deployment cradle that, with previous systems, would be housed within
a GRP or shell door containment. When the new weight saving fabric cover is used the system can
be stored anywhere damage by machinery or deck activity is less likely. All liferafts used by
the new system are of the SurvitecZodiac Aspirator type which makes it possible to reduce the
overall weight of the system by having a lower requirement for bottled gas for inflation. A regular
Throw-Over Self Righting 150 person raft weighs 840 kg whereas a SurvitecZodiac Solas Aspirator
Throw-Over 150 person liferaft weighs just 490 kg which makes it particularly suitable for use on
high speed craft. |
 |

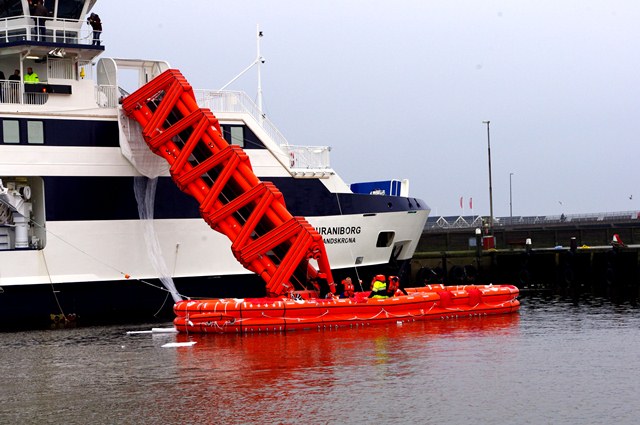

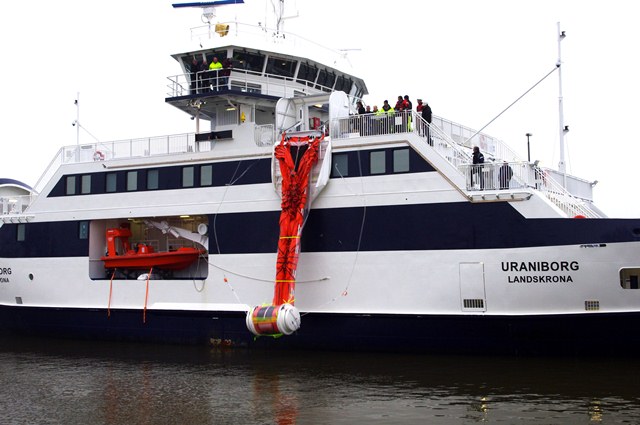

| Before the Uraniborg entered service, the escape slide system was subjected
to a full scale trial in the harbour at Hvide Sande. The 14.5-metre double slide was launched from

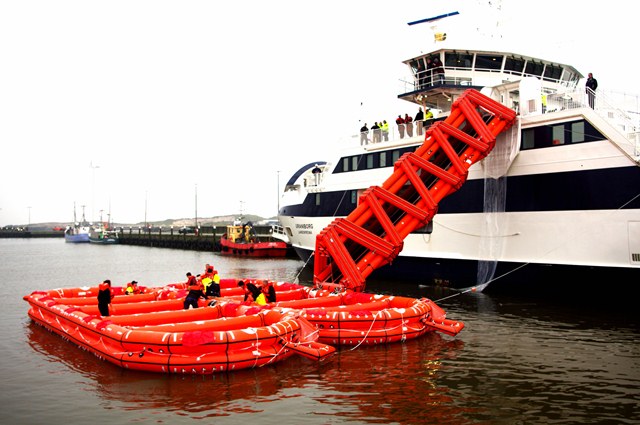

a height of 9.3-metres and the first raft was automatically deployed. The pre-connected second
raft was then launched from the first to create capacity for over 300 passengers and crew. When
used in a genuine emergency and the ship evacuation is complete, the last crew member to disembark
can activate a pyrotechnic knife patented by SurvitecZodiac. This device allows 30 seconds of
escape time before it separates the slide from the ship. The slide design is known to provide the
fastest evacuation speed for small to medium-sized ships and high speed craft as it can enable the
escape of 731 passengers in 30 minutes when used with SurvitecZodiac’s Throw-Over 150 person canopy
liferafts. |
 |
| The SurvitecZodiac MIS MES evacuation system is deployed at right angles to the
ship’s side and is available in four sizes covering freeboard installations from 3.8 to 9.3 metres.
The brand is also now preparing a 12.5-metre version for approval in early in 2013. The slides are
designed for deployment at an angle of 30-35 degrees as specified by SOLAS rules and are suitable
for a wide range of vessels. The SurvitecZodiac SOLAS MES MIS may be supplied for new builds such
as the Uraniborg or for retro-fitting. It can be provided with a choice of Throw-Over 100 or 150
person (B Pack) and Throw-Over Self Righting 100 or 150 persons (B Pack), Open Reversible Inflatable
100 or 151 person (HSC Pack) as chosen for the Uraniborg. |
 |
Manufactured in France, at the modern Survitec Group factory at Chevanceaux
near Bordeaux, the escape systems fitted to the Uraniborg are EC(MED) approved by Bureau Veritas.
The design has successfully passed heavy weather sea trials during which it was shown to operate
well in winds of Beaufort Force 6 to 7 and with wave heights from 4.5 to 5-metres and, on occasions,
up to 8-metres. This performance significantly exceeded the commercial regulatory requirements which
are limited to wind strengths of Beaufort Force 6 with 3-metre wave height
|
|
