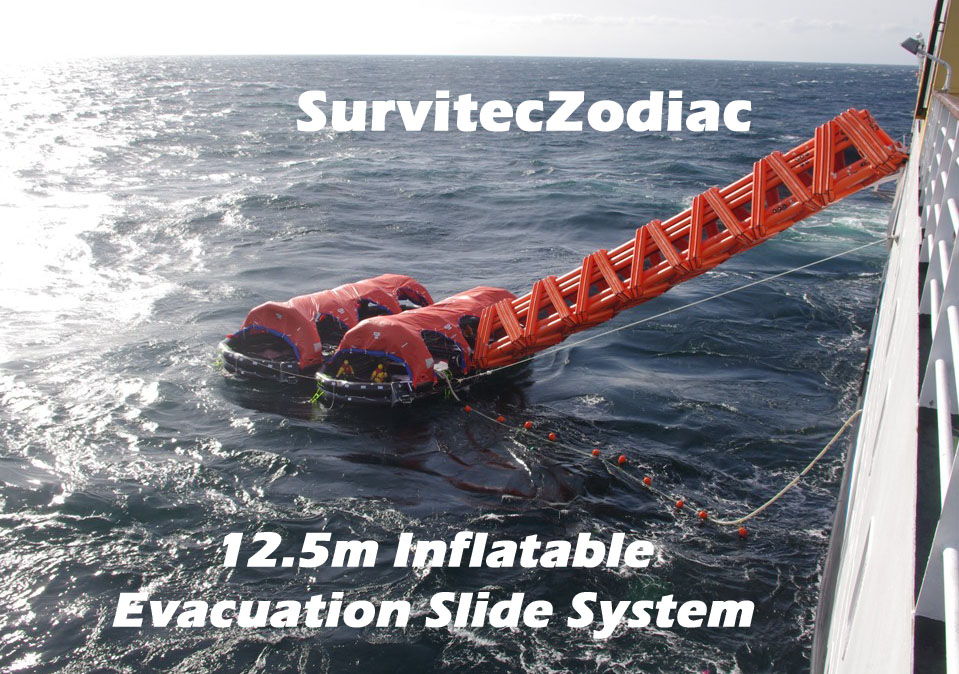

12.5m Inflatable Evacuation Slide System


SOLAS canopied liferafts
  • SOLAS A or B pack 100 persons or SOLAS B pack 150 persons liferafts
  • Regular or self-righting (TO or TO SR liferafts)
  • 1 raft packed with slide for quick operation
Open Reversible Liferafts (ORIL/IBA)
  • IBA or HSC packs
  • 100 or 151 persons capacity
  • 2 ORILs can be packed in one container with slide (very easy to use evacuation system)

General Details:
  • Slide lengths to cover vessel freeboards between 3.8m and 12.5m
  • 731 persons evacuated in 30 min for SOLAS passenger ship requirements
  • 397 persons evacuated in 17 min 40sec for High Speed Code (HSC) requirements
  • Push button system deployment and detachment of slide from raft
  • 150 persons liferaft translates to very low crewing requirements
  • Simple removal system for rapid, easy servicing
  • Additional liferafts stored close to slide location on separate cradles
  • SurvitecZodiac liferafts equipped with patented Venturi inflation system (fewer gas cylinders & weight saving)
  • Twin tracks that allow users to descend at a comfortable safe rate
  • Easy to use for people of all ages, sizes and abilities

SOLAS Canopied Liferafts
Canopy Liferafs

Open Reversible Liferafts
ORILs
System Specifications:
  • System including liferaft/ORIL in a cylindrical container + slide + aluminum cradle + cover
  • Manual and remote release system (control panel also manages the additional liferafts)
  • Float-free device - automatically activated in case of ship sinking
  • Bowsing arrangement of the primary liferaft comprising: bowsing lines, winch, rope clutches, blocks and split tubes for bowsing lines



MIS approval certificate


SYSTEM TYPES

Closed deck installations:
  • MES cradle support interface
  • Aluminum hull door
  • MES premises with inboard side door
Closed MIS Dimentions

Open deck installations:
  • MES cradle support interface
  • Ultra light weight fabric housing
Closed MIS Dimentions
